49 cc 2 stroke ignition

elehrke99 · 11-05-2018, 10:10 AM

Good morning.

I have a JM star 2 stroke scooter with no spark. We bought a stator and cdi and coil from VMC. Stator fits but the problem is the colors of wires don't match up and I have no idea of which wire goes where. I'd even negate the switch at this point just to see spark. Any ideas on how to ohm out or something to decide which wire goes where?

bogieboy · 11-05-2018, 12:12 PM

on the chinese stuff there are times that the colors will not match up... if you have pictures of the stator, cdi, and coiil, maybe we could better help you get the bike running?

see here if unsure of how to post pics :http://chinariders.net/showthread.php?t=8377

elehrke99 · 11-05-2018, 07:22 PM

Here ya go

elehrke99 · 11-05-2018, 07:23 PM

From left to right. CDI wires, Stator wires, stator

elehrke99 · 11-07-2018, 08:11 AM

bump

Bruces · 11-07-2018, 08:40 AM

Your stator picture isn’t helpful at all ,can you get a picture straight on where we can see what wire goes to what please .

elehrke99 · 11-08-2018, 01:45 PM

Name: stator1.jpg
Views: 314
Size: 93.5 KB

Name: stator2.jpg
Views: 328
Size: 91.0 KB

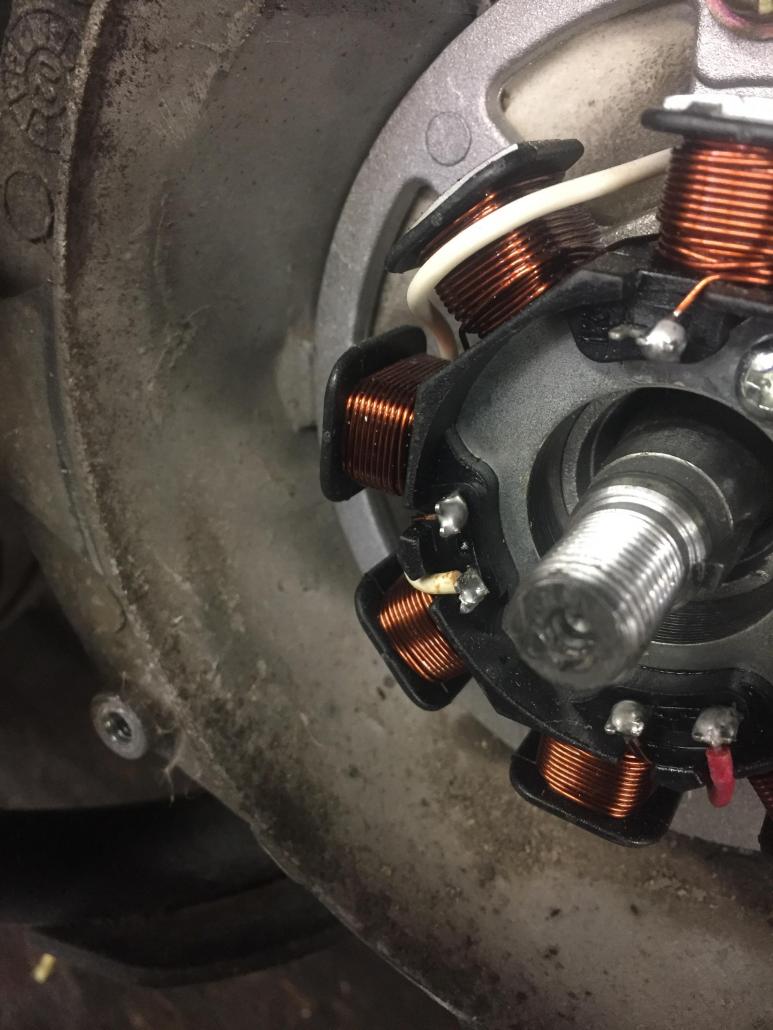

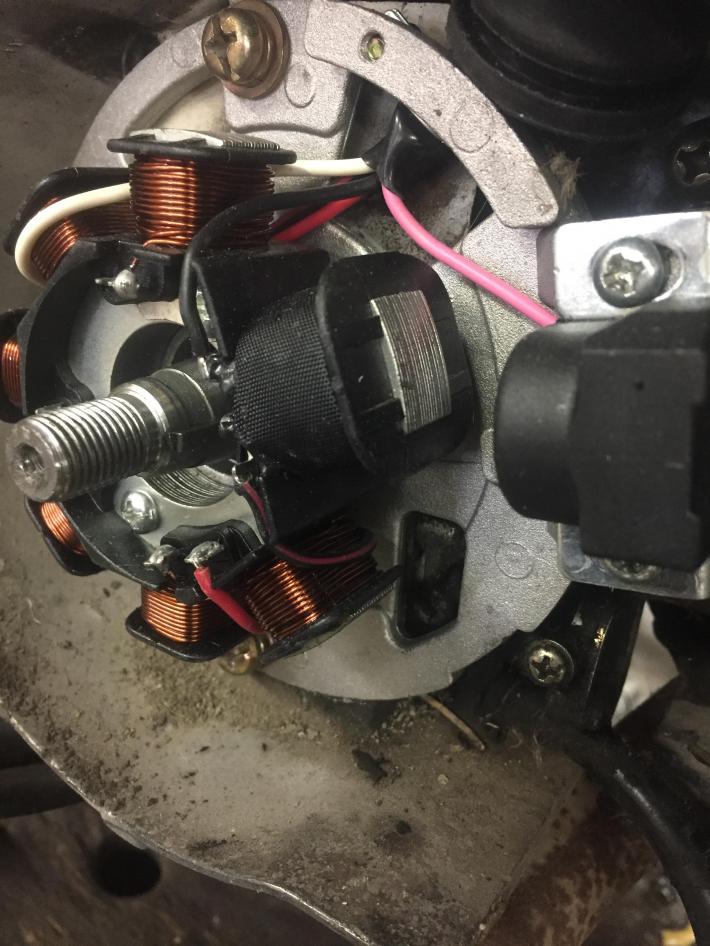

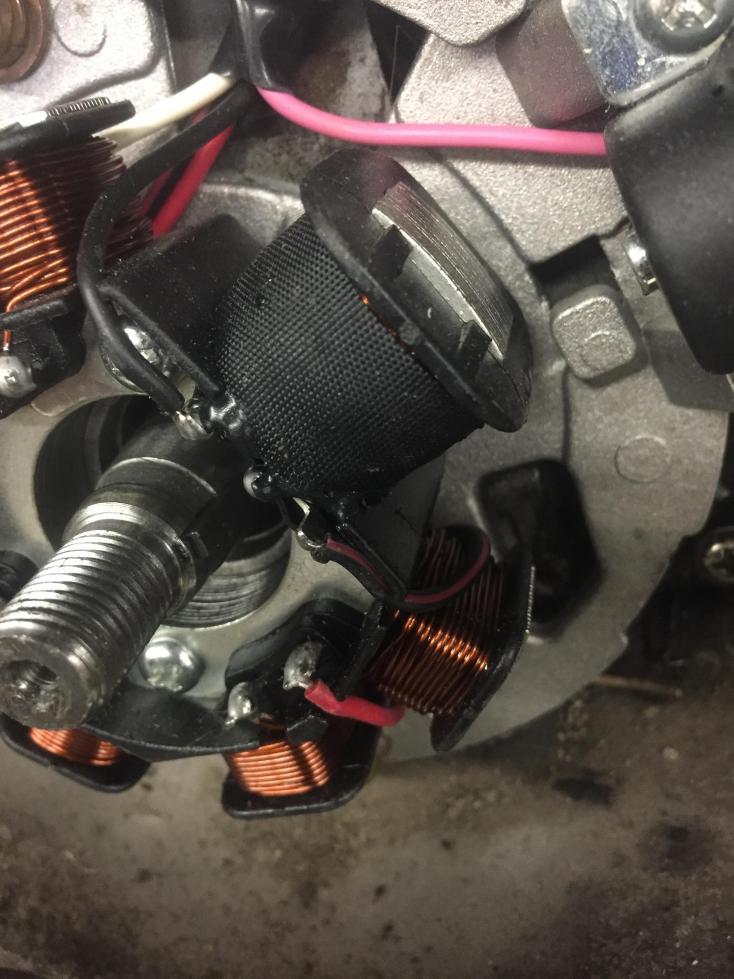

Name: stator3.jpg
Views: 335
Size: 89.8 KB

elehrke99 · 12-13-2018, 11:54 AM

ttt
