Hellcat help!

Stevi3 · 01-14-2020, 10:52 PM

I cant seem to find the 3rd bearing in the rear end of the bike. Its the larger bearing inside the hub that the sprocket is bolted to. I found the same size as far as width and height but i can't find that same bore in the center. Can anyone point me in the right direction? A friend gave me a Grom one and the center bore was still too big :(

kirbo7106 · 01-14-2020, 10:59 PM

Can you post some pictures?

RedCrowRides · 01-17-2020, 12:27 PM

Try this link and see if you can find the bearing you need : https://partskit.com/product/search/...hicles&vc=0591 or perhaps email them if you dont see it right off ,they are the single biggest source for Hellkat parts i know of.

Also, Google Kronik Racing in Cali as an alternate idea and give them a call, the bearings are the same for the Hellkat and the Boom 125 so they should be able to hook you up .

wlfpck · 02-20-2020, 08:50 AM

Quote:

Originally Posted by Stevi3

I cant seem to find the 3rd bearing in the rear end of the bike. Its the larger bearing inside the hub that the sprocket is bolted to. I found the same size as far as width and height but i can't find that same bore in the center. Can anyone point me in the right direction? A friend gave me a Grom one and the center bore was still too big :(

Not sure if you got this question answered/resolved yet...

If you have photos that would help a bit, but it sounds like you're saying that the rear hub is different on the Taotao hellcat than the grom hubs?

Given the fact that the axle bolt is the same size, have you tried using the Grom hub instead of the Taotao hellcat hub?

rokrider · 02-26-2020, 08:42 AM

Most sealed bearings (even on my China clone) have the bearing size
printed on the dust seal surface. Did you look at it carefully?

Try using the bearing size finder at:

https://bearingfinder.ntnamericas.co...-ball-bearings

Filter by your known OD and thickness to see what ID's are available.

**JerryHawk250** · 02-26-2020, 08:51 AM

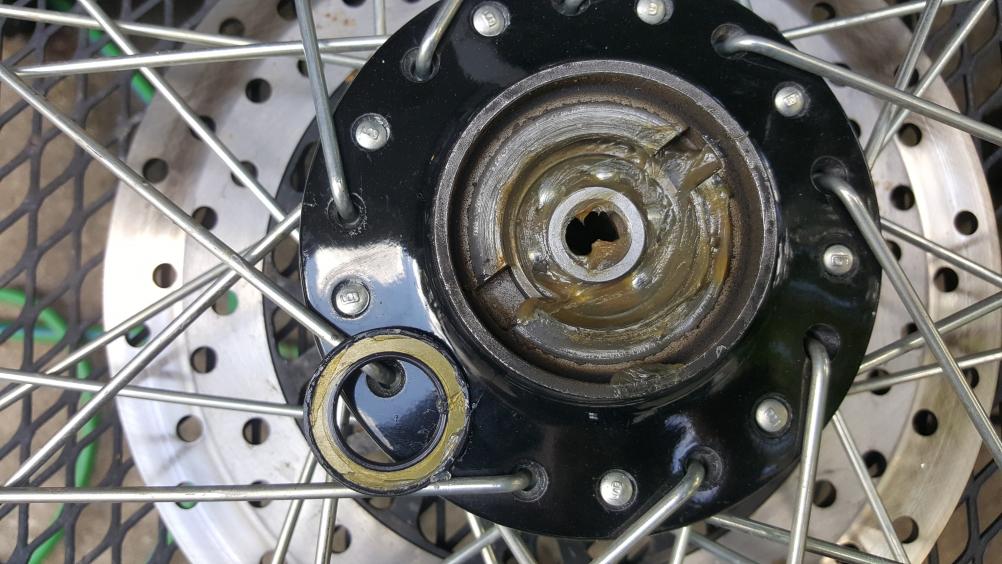

A little FYI. The so called sealed bearings are not actually sealed and should be greased when you first get the bike. I clean and grease mine about every 2500-3000 miles. Just pop the cover off and clean out with brake cleaner of your solvent of choice then repack them with grease.

01-14-2020, 10:52 PM	#1
Stevi3 Join Date: Jan 2020 Posts: 1	Hellcat help! I cant seem to find the 3rd bearing in the rear end of the bike. Its the larger bearing inside the hub that the sprocket is bolted to. I found the same size as far as width and height but i can't find that same bore in the center. Can anyone point me in the right direction? A friend gave me a Grom one and the center bore was still too big :(
	0

01-14-2020, 10:59 PM	#2
kirbo7106 Join Date: Feb 2017 Location: Holiday, Florida Posts: 672	Can you post some pictures? __________________ Dan-O -2018 Tao Tao HellCat - DOA -2016 Hawk 250 - Kitty Hawk - eBay exhaust, Mikuni carb(120 main/30 Pilot), airbox mod with K&N filter, digital cluster, total LEDs, 17/45 sprockets, RK chain, Shinko 244 tires, trunk, aftermarket levers, burrito tube, skid plate, Sargent Cycle Seat... -2003 HD Sportster 100th Anniversary -1999 Buell X-1 Lightning - Race kit, Buell Seat
	0

01-17-2020, 12:27 PM	#3
RedCrowRides Join Date: Jun 2018 Location: Florida Posts: 759	Try this link and see if you can find the bearing you need : https://partskit.com/product/search/...hicles&vc=0591 or perhaps email them if you dont see it right off ,they are the single biggest source for Hellkat parts i know of. Also, Google Kronik Racing in Cali as an alternate idea and give them a call, the bearings are the same for the Hellkat and the Boom 125 so they should be able to hook you up . __________________ 2001 Mustang GT 2004 Sportster 2018 VADER 2020 Orion RXB250L
	0

02-26-2020, 08:51 AM	#6
JerryHawk250 Moderator Join Date: Oct 2016 Location: Houma, La. Posts: 11,853	A little FYI. The so called sealed bearings are not actually sealed and should be greased when you first get the bike. I clean and grease mine about every 2500-3000 miles. Just pop the cover off and clean out with brake cleaner of your solvent of choice then repack them with grease. __________________ 2025 Lifan KPT 400 2024 Linhai 300 ATV 4x4 2023 Lifan Lycan 250 Chopper 2023 Venom Evader 2022 Lifan KPX250 2020 Kawasaki Vulcan S (Sold) 2004 Honda ST 1300 (Sold) 2016 Black Hawk 250 (sold) 2016 Cazador180 XL 2014 Coolster150 JerryHawk250.com My YouTube Channel
	1

02-26-2020, 08:42 AM	#5
rokrider Join Date: Oct 2019 Posts: 3	Most sealed bearings (even on my China clone) have the bearing size printed on the dust seal surface. Did you look at it carefully? Try using the bearing size finder at: https://bearingfinder.ntnamericas.co...-ball-bearings Filter by your known OD and thickness to see what ID's are available.
	0
