2021 TBR7 Assembly

adb1779 · 05-15-2021, 06:38 PM

Hi,

I just got my TBR7 a week ago and am doing the assembly. I have watched a few assembly videos but mine seems to be more unassembled than the videos.

I have some picture with lettered trays that have bolts/washers etc grouped together. I am not sure if the washers with flange are used to attach the rear rack. Also there is a plate with ~1.5 inch center hole and 4 bolt holes, not sure where the plate goes.

The tag place I went to in Warminster PA is sending my registration request to Harrisburg. They said I would get the tag but all L... VINs had to go to Harrisburg first and to expect a 4 to 6 week wait.

Any help would be appreciated.

Thanks
Al

Larky · 05-15-2021, 08:01 PM

The washers with the flange are indeed installed with the rear rack. That large metal object with the hole in the middle has me stumped. As far as the additional fasteners, it will be a process of elimination.

buzz · 05-15-2021, 10:28 PM

its a skid plate on thr bottom of engine

montalvo · 05-18-2021, 01:51 AM

I'm in the same boat. My TBR 7 was equally disassembled. Detailed instructions for assembling handguards but nothing on assembling the rest of the bike. But what I have so far:
In "A", the 4 longer bolts (8mm) are for the front fender.

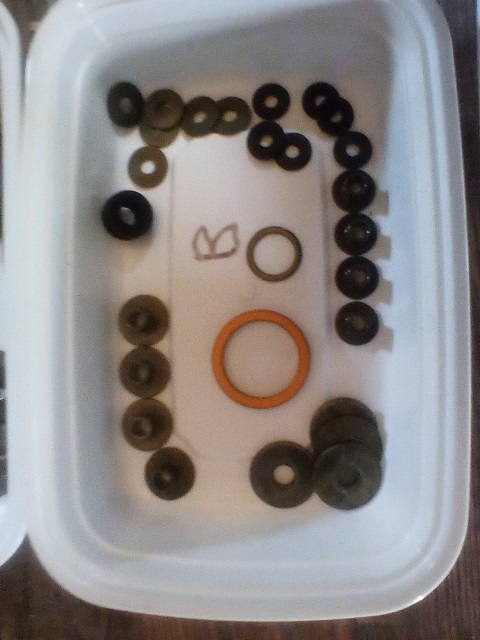

The copper gasket on B tray is for the muffler. Goes between the engine and the front of the pipe.

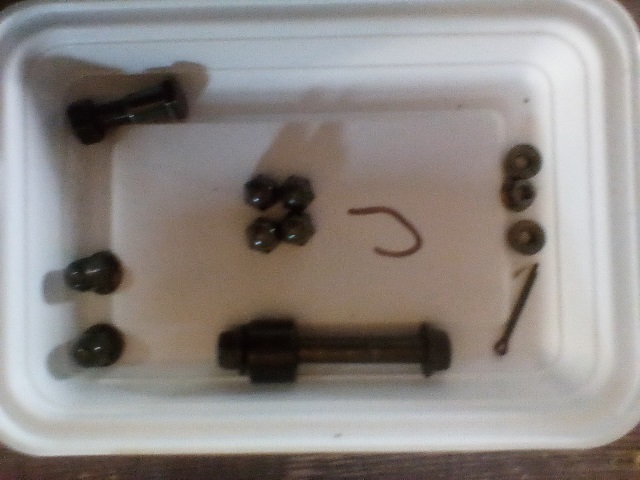

Large bolt on C tray is for the shock. The large spacer on that bolt is for the front wheel. Insert it in the side with the disc brake. The two capped nuts are for attaching the muffler to the engine. Cotter pin is for the brakes.
Hope this helps. I'm figuring it out too. If you discover where the rest of the stuff goes, I'd love to know myself!
Good luck!

TxTaoRider · 05-18-2021, 05:42 AM

Quote:

Originally Posted by montalvo

I'm in the same boat. My TBR 7 was equally disassembled. Detailed instructions for assembling handguards but nothing on assembling the rest of the bike. But what I have so far:
In "A", the 4 longer bolts (8mm) are for the front fender.
The copper gasket on B tray is for the muffler. Goes between the engine and the front of the pipe.
Large bolt on C tray is for the shock. The large spacer on that bolt is for the front wheel. Insert it in the side with the disc brake. The two capped nuts are for attaching the muffler to the engine. Cotter pin is for the brakes.
Hope this helps. I'm figuring it out too. If you discover where the rest of the stuff goes, I'd love to know myself!
Good luck!

I thought that was funny too. Mine came with an instruction booklet for the handguards and nothing for assembling the rest of the bike.

CheapThrills · 05-18-2021, 08:25 AM

Good luck with Pa registration hoops.

Skyd · 05-18-2021, 09:13 AM

Quote:

Originally Posted by CheapThrills

Good luck with Pa registration hoops.

Glad I'm located in the Live Free or Die state, I had zero issues getting my Hawk registered. Took a few minutes to figure out what Make she had to enter in the computer but other than that, smooth sailing. Got my plate, my registration, and the title should be here soon.

adb1779 · 05-19-2021, 10:53 PM

Thanks for all your comments. I had not thought about the exhaust pipe gasket, Thanks!
Since I am in PA I have a few more weeks to try and get this right before my plate arrives.

DSM · 05-21-2021, 09:27 AM

It took me some time to assemble the TBR7. The next one will go together quickly.
I was missing a few bits, mainly the rear brake linkage. I ended up fabricating one myself since it’s not shown as an available part.

There were two studs included that I never figured out what they were intended for. Any ideas?

montalvo · 05-24-2021, 05:06 PM

Dont mean to hijack this thread, but I figured this was the right place to ask.

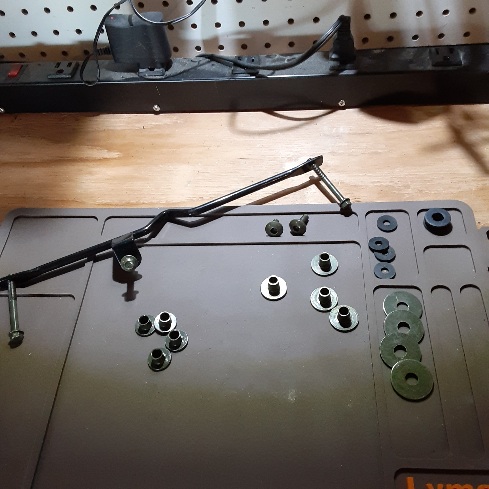

I finished assembling my 2021 TBR7 this weekend and had some leftovers. If anybody can tell me what/where they go, I'd greatly appreciate it.
Other than that, it's a blast to ride. Once the clutch breaks in I may even be able to shift into neutral.

DSM · 05-24-2021, 06:51 PM

Quote:

Originally Posted by montalvo

Dont mean to hijack this thread, but I figured this was the right place to ask.
I finished assembling my 2021 TBR7 this weekend and had some leftovers. If anybody can tell me what/where they go, I'd greatly appreciate it.
Other than that, it's a blast to ride. Once the clutch breaks in I may even be able to shift into neutral.

The rod is the tank plastic front supports. It bolts to the frame under the tank. I believe the grommet goes in the hole for the frame bolt.
The short cup washers are for the front fender.

KevMac78 · 05-27-2021, 11:47 AM

Does anyone have a picture of where the brake spring is attached?

DSM · 05-28-2021, 05:07 AM

Look under the right foot peg. There’s a pin to hook it to there.

Ericap615 · 06-05-2021, 11:38 PM

Hey, I’m new to the forum but I sense a pattern here. It seems the 2021 models when chosen not assembled are a lot more technically involved. (This forum has been a blessing btw) . I’m wondering how to jack the body up to put in the shock bolt? It’s my first bike build so please take it easy. I’m writing on this post because I also would like to know what all the nuts and bolts are for. I have most of the bike together, but I want to make sure it’s correct.

stewbrash · 06-06-2021, 02:42 AM

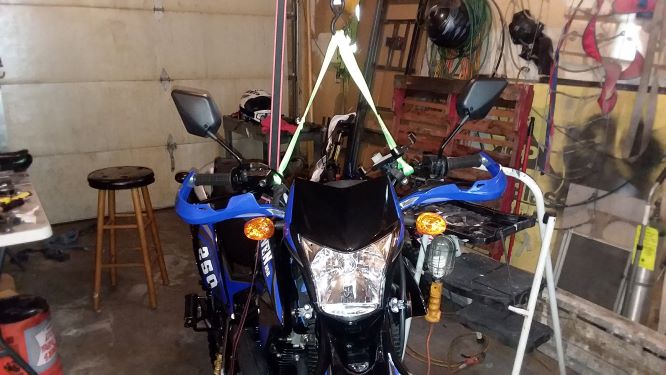

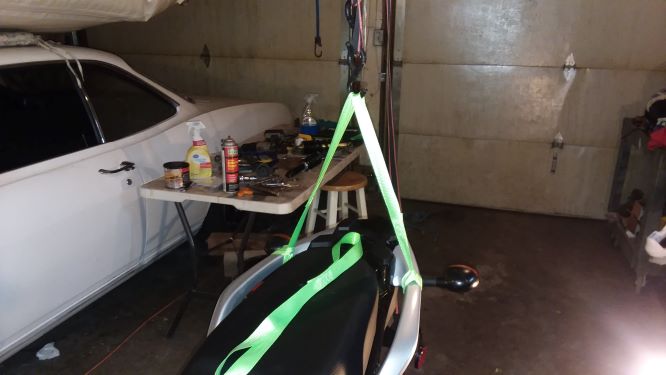

You can use a floor jack under the motor or use some ratchet straps from the ceiling.
